In today's industrial landscape, efficient material handling is a cornerstone of productivity, safety, and operational efficiency. Among the various types of cranes used for lifting and transporting heavy loads, the double girder gantry crane has emerged as one of the most reliable and versatile solutions. Its robust design, high load capacity, and operational precision make it indispensable across multiple industries, including steel manufacturing, shipbuilding, construction, logistics, and energy sectors.

Dhiraj Crane, a renowned manufacturer in India, specializes in designing and delivering high-quality double girder gantry cranes tailored to meet the unique requirements of diverse industrial operations. Their cranes not only enhance productivity but also ensure safety and durability in demanding environments. In this comprehensive blog, we will explore the structural design, engineering features, operational benefits, industry applications, and maintenance practices of double girder gantry cranes.

Understanding Double Girder Gantry Cranes

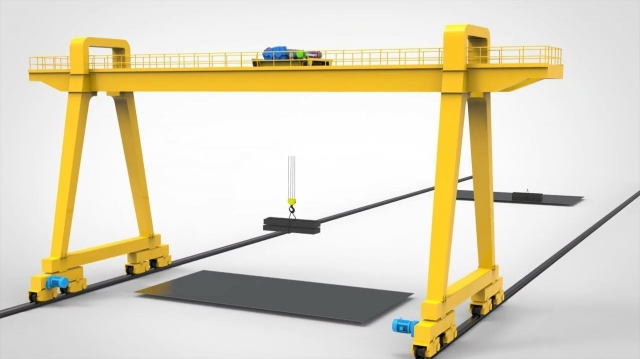

A double girder gantry crane is a type of overhead crane that utilizes two horizontal girders (beams) supported by vertical legs mounted on wheels or rails. The dual-girder structure allows the crane to move along a predefined track, providing the capability to lift and transport heavy loads across a wide area with stability and precision.

Structural Components of a Double Girder Gantry Crane:

  1. Bridge Girders: Two parallel beams forming the main structure, providing strength and stability.

  2. End Trucks: Vertical supports with wheels that enable the crane to traverse the rails.

  3. Hoist: The lifting mechanism mounted on a trolley to raise and lower loads.

  4. Trolley: Moves the hoist along the bridge girders for precise positioning.

  5. Control System: Advanced controls (wired or wireless) for safe and efficient operation.

This configuration ensures superior load distribution, enabling the double girder gantry crane to handle larger weights and taller loads than single girder cranes. Additionally, the twin-girder design allows for greater hook height and better clearance, making it suitable for operations requiring vertical lifting flexibility.

Key Features and Advantages

  1. High Load Capacity:

    A major advantage of a double girder gantry crane is its ability to handle extremely heavy loads. These cranes are engineered to lift weights ranging from a few tons to several hundred tons. Their robust construction and high-strength steel components ensure safe handling of even the heaviest industrial materials.

  2. Greater Hook Height and Span:

    The design provides a higher hook clearance compared to single girder cranes. This allows the crane to lift taller materials and provides flexibility for operations with large vertical space requirements. The long span of the crane can cover wider areas, improving workflow efficiency in factories and yards.

  3. Enhanced Stability:

    The dual-girder design provides a stable platform for the trolley and hoist, reducing sway during lifting operations. This stability is crucial when handling sensitive equipment, oversized loads, or when precision positioning is required.

  4. Customization and Versatility:

    Manufacturers like Dhiraj Crane offer fully customizable solutions, including variable spans, lifting capacities, hoist types, and mobility options. Businesses can request cranes adapted to specific floor layouts, load types, or outdoor applications.

  5. Durability and Reliability:

    Constructed from premium materials and engineered for industrial durability, double girder gantry cranes withstand harsh environments, including high-temperature steel plants, shipyards, and outdoor operations. Regular maintenance is minimal due to the robust design, making them a long-term investment.

  6. Advanced Safety Features:

    Modern double girder cranes come with built-in safety mechanisms such as overload protection, anti-sway control, emergency stop systems, limit switches, and collision avoidance sensors. These features protect both operators and equipment, ensuring safe material handling.

Types of Double Girder Gantry Cranes

Double girder gantry cranes can be classified based on design, operation, and industrial needs:

  1. Full Gantry Cranes:

    Both legs rest on rails, providing full mobility across the workspace. Commonly used in shipyards, steel yards, and heavy industries.

  2. Semi-Gantry Cranes:

    One leg rests on a rail while the other is supported on a wall or building structure. Ideal for facilities with space constraints or one-sided operational requirements.

  3. Goliath Cranes:

    These are high-capacity cranes used in large industrial sectors. They can handle extremely heavy loads with a high degree of precision.

  4. Customized Solutions:

    Dhiraj Crane offers tailor-made cranes with specific spans, capacities, hoist types, and automation options. Customization ensures that industrial requirements are perfectly matched, optimizing workflow and safety.

Industrial Applications of Double Girder Gantry Cranes

The versatility of double girder gantry crane allows them to serve a broad spectrum of industries:

  1. Steel and Metal Industry:

    Lifting heavy steel billets, coils, and sheets with precision is critical. Double girder cranes ensure safe handling and reduce the risk of accidents.

  2. Construction and Infrastructure:

    Moving large beams, precast concrete, and construction machinery is simplified with these cranes, improving project timelines and labor efficiency.

  3. Shipbuilding and Ports:

    Large ship components, containers, and engines are safely handled, facilitating smooth operations in shipyards and cargo handling zones.

  4. Warehousing and Logistics:

    Heavy goods, oversized packages, and containers are efficiently loaded and unloaded, optimizing warehouse workflow.

  5. Power Plants and Energy Sector:

    Turbines, generators, and heavy equipment can be transported and positioned accurately with the precision offered by these cranes.

  6. Automotive and Machinery Manufacturing:

    In assembly lines and machinery workshops, double girder gantry cranes enable smooth movement of heavy parts, reducing downtime and improving operational efficiency.

Engineering and Design Considerations

When selecting a double girder gantry crane, several engineering factors must be considered:

  1. Load Capacity: Assess the maximum weight of materials to be lifted and select the crane accordingly.

  2. Span and Travel Distance: The crane should cover the required operational area efficiently.

  3. Hook Height and Clearance: Ensure the crane can lift tall materials without obstruction.

  4. Hoist Type: Wire rope or electric chain hoists are chosen based on load type and lifting frequency.

  5. Operational Environment: Indoor vs. outdoor usage, exposure to corrosive materials, and extreme temperatures affect material selection and coating.

  6. Automation and Controls: Integration of advanced controls, wireless operation, and safety sensors can enhance precision and safety.

Maintenance Best Practices

To maintain efficiency and prolong the lifespan of a double girder gantry crane, follow these practices:

  • Regular Structural Inspection: Check for wear, cracks, and deformation in girders and support structures.

  • Lubrication: Keep moving parts, wheels, and bearings well-lubricated to prevent friction and damage.

  • Electrical System Checks: Inspect wiring, control panels, limit switches, and emergency systems.

  • Load Testing: Periodically test the crane under full capacity to ensure safe operation.

  • Operator Training: Ensure operators are skilled in safety protocols, emergency handling, and operational procedures.

Advantages Over Single Girder Cranes

While single girder cranes are suitable for light to medium loads, the double girder gantry crane provides:

  • Higher lifting capacity for heavy-duty operations.

  • Greater hook height and span coverage.

  • Enhanced stability for precise load positioning.

  • Ability to accommodate larger hoists and advanced automation.

  • Better durability for long-term industrial applications.

Why Choose Dhiraj Crane?

Dhiraj Crane stands out as a premier manufacturer of double girder gantry crane in India. Their cranes are recognized for:

  • Expertise: Years of experience in manufacturing cranes for diverse industries.

  • Customization: Tailored solutions based on operational requirements.

  • Quality Assurance: Rigorous quality checks and durable construction ensure reliable performance.

  • After-Sales Support: Comprehensive service, maintenance, and technical assistance.

Partnering with Dhiraj Crane ensures businesses acquire reliable cranes that enhance operational efficiency and safety.

Conclusion

The double girder gantry crane is an indispensable asset in industries where safe, efficient, and precise material handling is required. Its robust design, high load capacity, stability, and flexibility make it suitable for steel manufacturing, construction, shipbuilding, logistics, and power generation sectors.

By choosing Dhiraj Crane, companies gain access to high-quality cranes designed for durability, precision, and operational excellence. Investing in a double girder gantry crane not only increases productivity but also ensures workplace safety, operational efficiency, and long-term cost savings.

For businesses looking to upgrade their material handling systems, exploring the range of double girder gantry cranes offered by Dhiraj Crane is a strategic step toward industrial growth and efficiency.
